Fast Charge Rechargeable Lifepo4 Prismatic Cell 3.2V 15AH 3C Continuous Discharge Rate
Fast Charge Lithium Battery 2C Charge Rechargeable Lifepo4 Prismatic Cell 3.2V 15AH 4C Continuous Discharge Rate
What is the advantage of Benergy Lifepo4?
The characteristic of Benergy cells:
* Fast charge. 2C charge, that means can be fully charged in 0.5 hour.
* High discharge rate. 4C continuous discharge. 60A continuously for 15Ah cells.
* Low cost. As the battery or long time using, the costs is even much lower than lead acid battery.
* Low toxicity
* Well-defined performance
* Long-term stability
Now Benergy LiFePO4 is widely used for electric vehicle use, car starting, power tools, utility scale stationary applications, and backup power.LFP batteries are cobalt-free.
Parameter Table
| Product Type | Lithium Iron Phosphate Cell |
| Shell Type | Plastic Shell |
| Brand Name | Benergy |
| Voltage | 3.2V |
| Nominal Capacity | 15AH |
| Minium Capacity | 15AH |
| IR | ≤5mΩ |
| Size | 27*70*160mm (W,L,H) |
| Weight | 600g±150g |
| Charge Mode | CC/CV (Continuous current/Continuous Voltage) |
| Max Charge Current | 30A (2C) |
| Charge Cut Off Voltage | 3.65V±0.05 |
| Standard Discharge Current | 3A (0.2C) |
| Max Continuous Discharge Current | 60A (4C) |
| Peak Discharge Current @3 sec | 150A |
| Discharge Cut Off Voltage | 2.5V |
| Terminals | M6 |
| Cycle Life | >3000 Times (0.5C charge/discharge, 80% DOD) |
| Discharge Temperature | -10～55℃ |
| Charge Temperature | 0～45℃ |
| Application | Electric boat, yacht, marine, EV etc. |
| Warranty | 2 Years |
| OEM/ODM | Yes(Accepted) |
Discharge curves
Cyle life

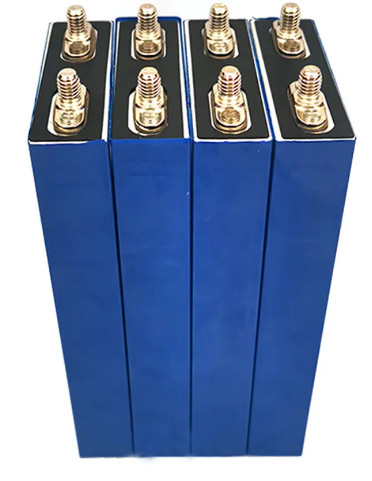

Product Picture
Package
Benergy pack the cells professionally, with foam well protect each cell. And then put into UN carton to make sure the batteries are safe. And then we ship the cell by Fedex/UPS/DHL or by air/by sea to customers.
Certifications
